Remote Design Debugging

Common debugging approaches:

  • Start Tomcat as the server and connect the designer to it remotely.
    • To debug the designer side: set breakpoints in the IDE.
    • To debug the Tomcat side: integrate Tomcat with your IDE and set breakpoints there.
  • Alternatively, launch two designer instances — one using Jetty as the server, and the other starting only the designer and connecting to it remotely.

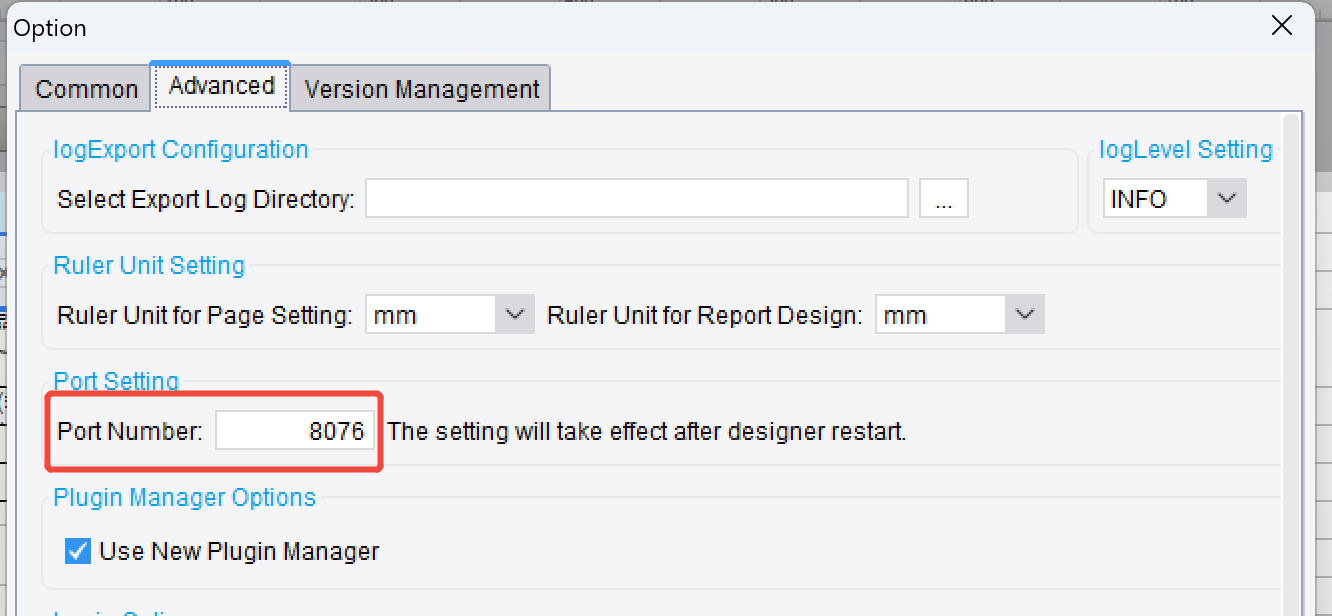

    • The designer's default port is 8075; one of them must be changed to a different port to avoid conflicts. change_port.png

Notes

  • The plugin version must be the same in both the remote and local environments; otherwise the local plugin will not take effect.

Example

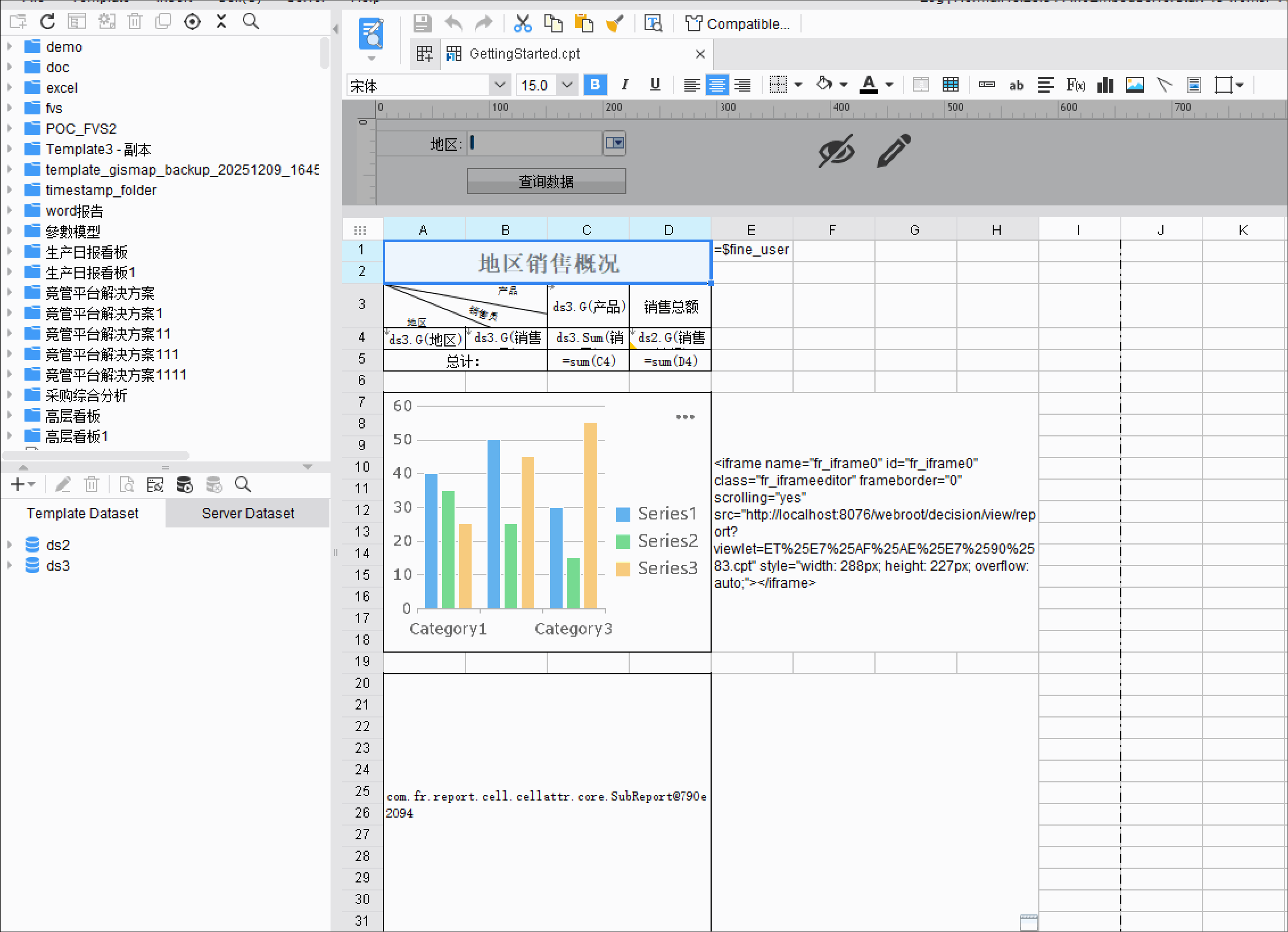

Remote debugging demo
