Custom Widget
Step 1: Register the Widget Interface

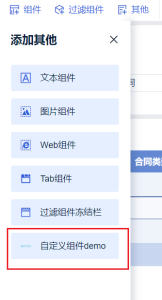

Target effect:
Implement a Provider to register the custom widget by extending AbstractCustomWidgetProvider:
public class XXXProvider extends AbstractCustomWidgetProvider {
/** Custom widget name or i18n key */
@Override
public String getName() {
return "Custom Widget Demo";
}
/** Custom widget type */
@Override
public String getType() {
return "demo";
}
/** Custom widget icon */
@Override
public String getIcon() {
return "http://webapi.amap.com/theme/v1.3/mapinfo_05.png";
}
/** Custom option xtype */
@Override
public String getCustomTool() {
return "bi.plugin.testwidget";
}
// See Step 2 for the remaining methods
......
}
Step 2: Build the Render Page
Provide separate HTML fragments and corresponding frontend Atom entry points for edit and preview modes:
public class XXXProvider extends AbstractCustomWidgetProvider {
/** HTML for the widget edit page; defaults to preview if not specified */
@Override
public String getEditPageHTML(XXContext context) {
return "<div id=\"container\"></div>";
}
@Override
public Atom editClient() {
return XXXComponent.KEY;
}
/** HTML for the widget preview page */
@Override
public String getPreviewPageHTML(XXContext context) {
return "<div id=\"container\"></div>";
}
@Override
public Atom previewClient() {
return XXXComponent.KEY;
}
}
JS Specification
1. Implement the Custom Widget Render Function
/**
* @param data Filter information, including:
* - controlFilterParamsMap: control filter
* - linkageParamsMap: custom linkage filter
* @param config Configuration information, including:
* - customWidgetConfig: custom saved configuration
* - customWidgetToolConfig: custom option saved configuration
* @param closeSessionCallback Ends the current page session and returns control to BI
* @param saveSessionCallback(json) Save callback; accepts a JSON object, returns a Promise
* Example: saveSessionCallback({ renderTimes: renderTimes + 1 })
* @param extensionCallBack Callback for refresh: extensionCallBack('refresh')
*/
function render(data, config, closeSessionCallback, saveSessionCallback, extensionCallBack) {
}
new BIPlugin().init(render);
2. Implement the Custom Option Component
The corresponding JS is injected into the theme edit page. The xtype must match the return value of getCustomTool():
const widget = BI.inherit(BI.Widget, {
......
render: function () {
// Retrieve custom option config and save method from options
const {
customWidgetToolConfig = {},
saveCustomWidgetToolConfig
} = this.options;
// saveCustomWidgetToolConfig({...}) saves the option configuration
......
}
});
BI.shortcut('bi.plugin.testwidget', widget);
